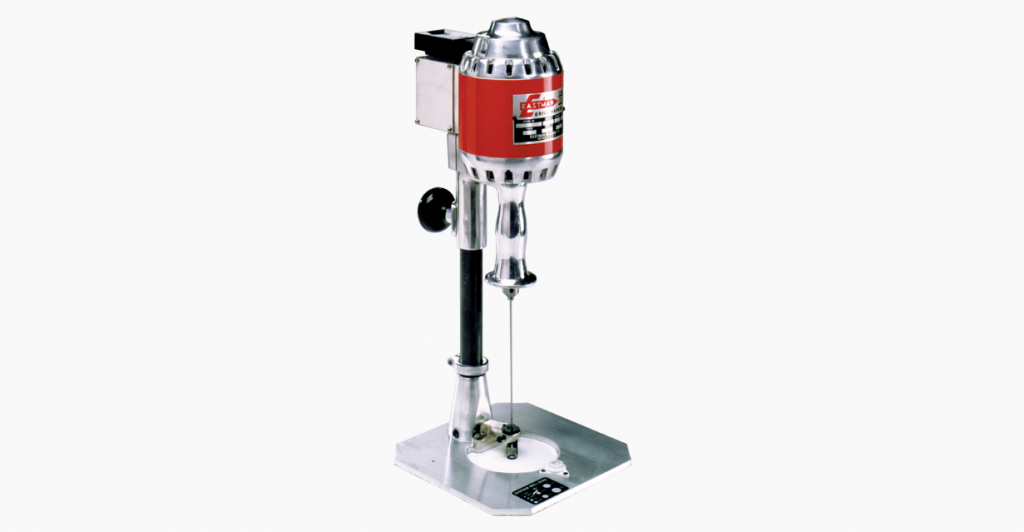

Cloth Drill
SKU: CD3
View Product on Marketing Website
The Eastman Cloth drill marker can drill holes through numerous layers of fabric, indicating buttonholes, darts, pockets, and other attachment points.
This is perfect for use on loosely knit, bulky, or quilted spreads, where a mark is needed, but where a burn mark would be unnecessary.
Categories
Drills & Marking, Manual Cutting
Product Attributes
| Motors |
110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz |
|---|---|
| Horsepower |
0.20hp, 1ph 0.34hp, 3ph |
| Weight |
15 lbs. 12 oz. (6.84kg) |
| Drill Tips Available |
Standard: Taper Point Optional: Diamond Point, Open End Awl, Closed Awl, PTFE Coated |
| Drill Diameter |
English Metric 3/64 in 1.19mm 5/64 in 1.98mm 3/32 in 2.38mm 1/8 in 3.18mm 5/32 in 3.97mm 3/16 in 4.76mm 1/4 in 6.35mm 5/16 in 7.93mm 3/8 in 9.52mm |
| Drilling Capacity |
6 in. (15.2cm) 8 in. (20.3cm) 11.5 in. (29.2cm) |
Disclaimer: All indicated specifications, dimensions, weights and performance data are approximate and subject to change without notice.
