C135 Conveyor System
SKU: C125
View Product on Marketing Website

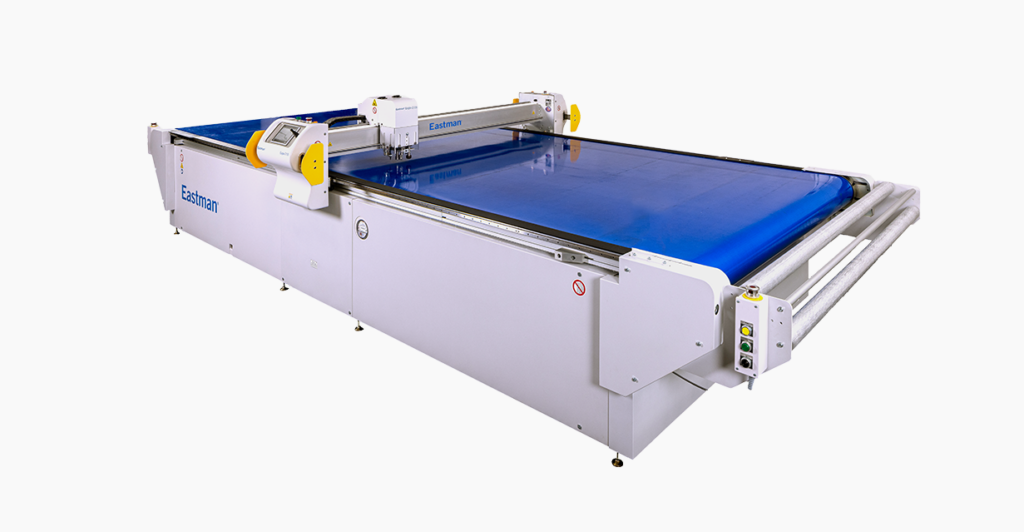

The Eastman Eagle C135 conveyor system boasts supreme capabilities for single- to low-ply cutting requirements. It has the ability to continuously convey rolled material goods with consistent speed and control. Eastman’s gantry and tool head design are engineered to cut the most diverse technical and industrial fabrics available, while exceeding industry standards for accuracy.
The robust conveyor design delivers unrivaled levels of material utilization and is often capable of cutting multiple layers without plastic overlay. This computer-controlled cutting system requires minimal operator guidance to automatically feed and spread material to the identified start position. The C135 offers tremendous efficiency when cutting pattern pieces that exceed the table length. The exclusive InMotion™ software enables the machine to continuously cut while conveying.
Available in a range of widths, lengths and various tool head accessory options, the C135 will be built to match your application needs, allowing you to customize the tools and capabilities to maximize productivity.
Categories
Automated Cutting, Automated Cutting Systems
Product Attributes
| Width |
78 in. (1.98 m) 96 in. (2.44 m) 108 in. (2.74 m) 114 in. (2.90 m) 126 in. (3.20 m) 156 in. (3.96 m) Please contact the factory for active cutting zone dimensions. Custom widths available, please contact the factory for more information. |
|---|---|
| Length |
16 ft. (4.88m) 20 ft. (6.10m) 36 ft. (10.97m) Please contact the factory for active cutting zone dimensions. Custom lengths available, please contact the factory for more information. |
| Drive System |
Dual-X Axis, Y-Axis & Theta Axis. X & Y-Axis Rack & Pinion Drive, Brushless Servo Motors |
| Electric - Control Power/PC |
230V, 3 ph, 50/60 Hz, 5.4 kVA. Stand-alone step-down transformer required for other voltages. |
| Electric - Vacuum Blower |
208/230/380/460V, 3 ph, 50/60 Hz, 10 HP, VFD control |
| Power: Pneumatic |
75 – 90 psi at 15 SCFM (5.17 – 6.2 bars at 0.42 cmm) |
| Maximum Cutting Speed |
60 inches/second (152.4cm/second) |
| Maximum Conveyor Speed |
11 inches/second (28cm/second) System size dependent. |
| Maximum Acceleration |
1.3g |
| Maximum X/Y Speed |
60 inches/second |
| Compressed Air Consumption |
15 cfm |
| Sound Level |
<76 db(A) |
| Operating Temperature |
55 – 100°F (12 – 37°C) |
| Humidity |
20 – 80% (non-condensing) |
