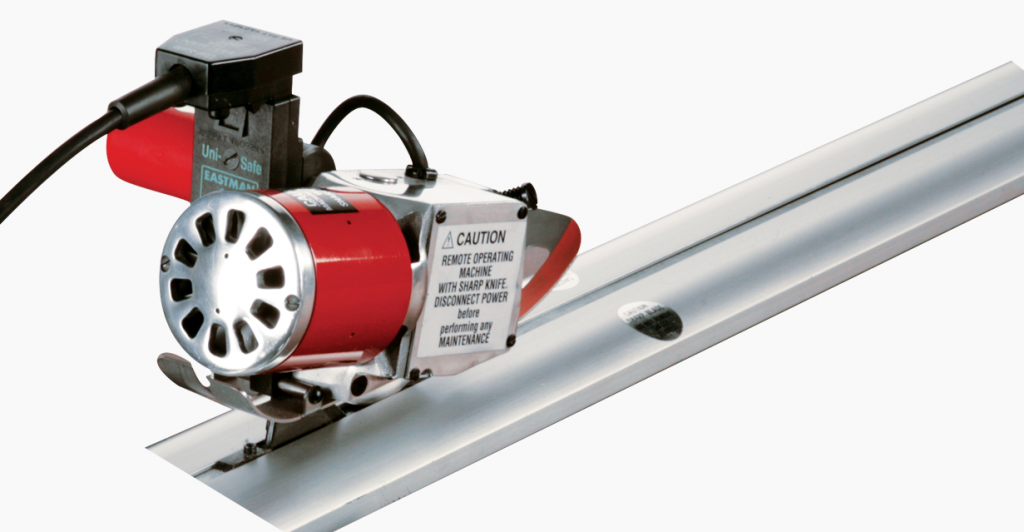

Auto Track Falcon® II
SKU: ATFII
View Product on Marketing Website
Eastman's Auto Track Falcon II offers automatic traversing of the cutting head and an automatic lift feature.
Both features enhance cycle time and throughput in comparison to manually-operated models.
The remote control enables the operator to activate the Auto Track Falcon's cutting cycle as soon as the operator is finished pulling the ply down the table.
Categories
End Cutters, Manual Cutting
Product Attributes
| Table Widths Available |
48 – 144 in. (1.22m – 3.66m) |
|---|---|
| Motors |
110v, 1ph, 50/60Hz 220v, 1ph, 50/60Hz Pneumatic Head Option: 60-90psi. Control box only: 110V, 1ph, 50/60Hz or 220V, 1ph, 50/60Hz |
| Horsepower |
0.15hp 0.33hp (pneumatic head option) |
| Weight with Track & Lifters |
160 lbs. (72.60kg) 157 lbs. (71.20kg) – pneumatic head option |
| Standard Features |
Auto Start/Stop, Ply Counter, Speed Setting, Compression Foot, Remote Control |
| Options |
Auto Lifter, Foot Pedal, Material Alignment |
| Blade Size |
4 in. (10.2cm) |
| Cutting Capacity |
1.25 in. (3.20cm) |
