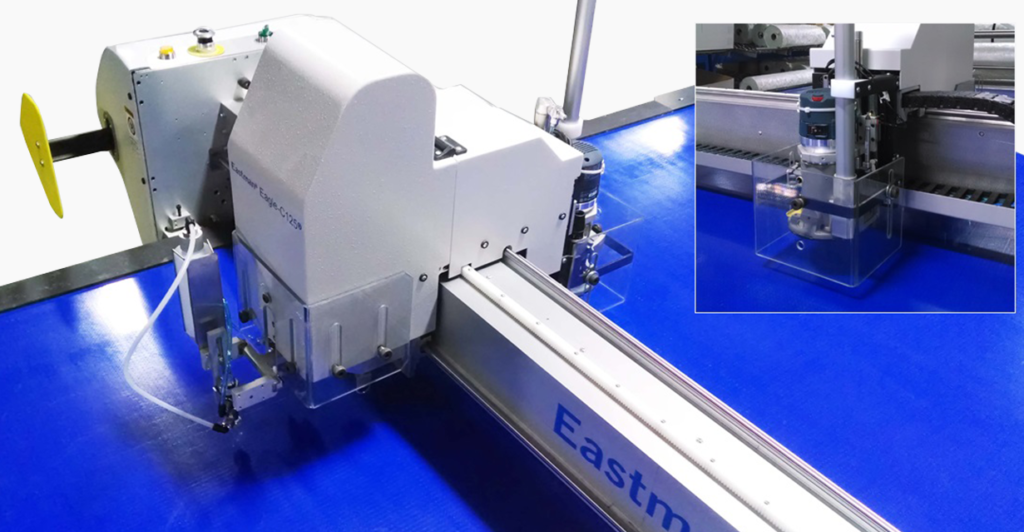

Combi Router – Cutting System
SKU: Router
View Product on Marketing Website
Eastman’s router tool head option delivers heavy-duty performance for thick and dense materials. This system offers a two-spindle tool head in addition to the router for a variety of cutting and routing options. Features such as a pneumatically controlled z-axis and a manually adjustable depth-control function facilitate cutting materials such as soft or hard wood, composites, fiberboard, and a variety of plastics. A large-capacity debris-collection system helps create a clean work environment.
Available in a range of widths, lengths and various tool head accessory options, the S125 with laser will be built to match your application needs, allowing you to customize the tools and capabilities to maximize productivity.
Categories
Automated Cutting, Automated Cutting Systems
Product Attributes
| Width |
60 in. (1.54m) 72 in. (1.82m) 78 in. (1.98 m) 96 in. (2.44 m) 108 in. (2.74 m) 114 in. (2.90 m) Please contact the factory for active cutting zone dimensions. Custom widths available, please contact the factory for more information. |
|---|---|
| Length |
8 ft. (2.44m) 12 ft. (3.66m) 16 ft. (4.88m) 20 ft. (6.10m) 36 ft. (10.97m)+ Please contact the factory for active cutting zone dimensions. |
| Drive System |
Dual-X Axis, Y-Axis & Theta Axis. X & Y-Axis Rack & Pinion Drive, Brushless Servo Motors |
| Electric - Control Power/PC |
115/230V, 1 ph, 50/60 Hz, 3.6 kVA |
| Electric - Vacuum Blower |
208/230/380/460V, 3 ph, 50/60 Hz, 7.5 HP, VFD control optional |
| Power: Pneumatic |
75 – 90 psi at 15 SCFM (5.17 – 6.2 bars at 0.42cmm) |
| Maximum Cutting Speed |
60inches/second (152.4cm/second) |
| Maximum Acceleration |
0.5g |
| Compressed Air Consumption |
15 CFM |
| Sound Level |
<75 db(A) |
| Operating Temperature |
55 – 100°F (12 – 37°C) |
| Humidity |
20 – 80% (non-condensing) |
