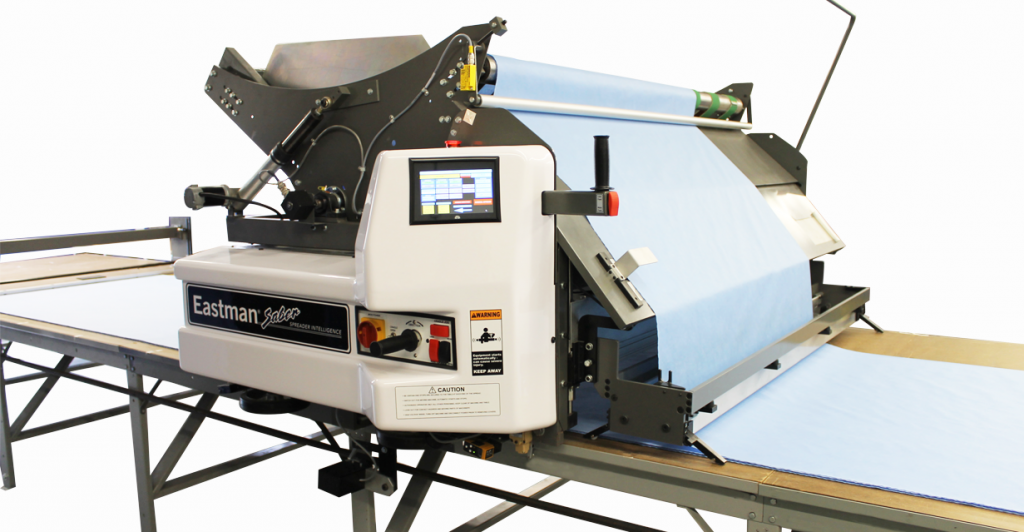

Saber C-Series

Saber C-Series

SKU: C-250, C-550, C-1200, C-1650, C-2200

View Product on Marketing Website

The Saber C-Series computerized, cradle feed machine is a robust yet smooth operating material spreading system with models suitable for up to 2,200 lb. rolls.

Varying tension within a roll is controlled by continuously measuring the angle deflection of the cloth as it feeds from the system, and the system compensates accordingly.

This Windows-based operating system features a modern color touchscreen display, allowing the user to key in spread length and splices. Files can be uploaded via WIFI from a remote computer location, or can be generated on the spreader. Multiple files can be sent remotely to create a queue.

Categories

Material Handling, Spreading Systems

Product Attributes

Roll Weight - Maximum

C-250 – 250 lbs. (115 kg)
C-550 – 550 lbs. (250 kg)
C-1200 – 1200 lbs. (545 kg)
C-1650 – 1650 lbs. (750 kg)
C-2200 – 2200 lbs. (1000 kg)
Roll Diameter - Maximum

C-250 – 27 in. (70 cm)
C-550 – 30 in. (80 cm)
C-1200 – 36 in. (90 cm)
C-1650 – 42 in. (110 cm)
C-2200 – 50 in. (130 cm)
Material Width

66 – 72 in. (168-183cm) Custom working widths available upon request.
Speed - Max. Per Minute

110 yards/minute (100m/minute)
Load Height

Based on frame height and model, please contact the factory for details.
Number of Wheels on Table

C-250 – 4
C-550 – 4
C-1200 – 6
C-1650 – 8
C-2200 – 8
Number of Wheels Driven

C-250 – 4
C-550 – 4
C-1200 – 6
C-1650 – 8
C-2200 – 8
Additional Information

Please contact the factory for additional information on spread heights, frame heights, knifes, catchers, etc.
Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
