Turntable
SKU: EASITURN
View Product on Marketing Website

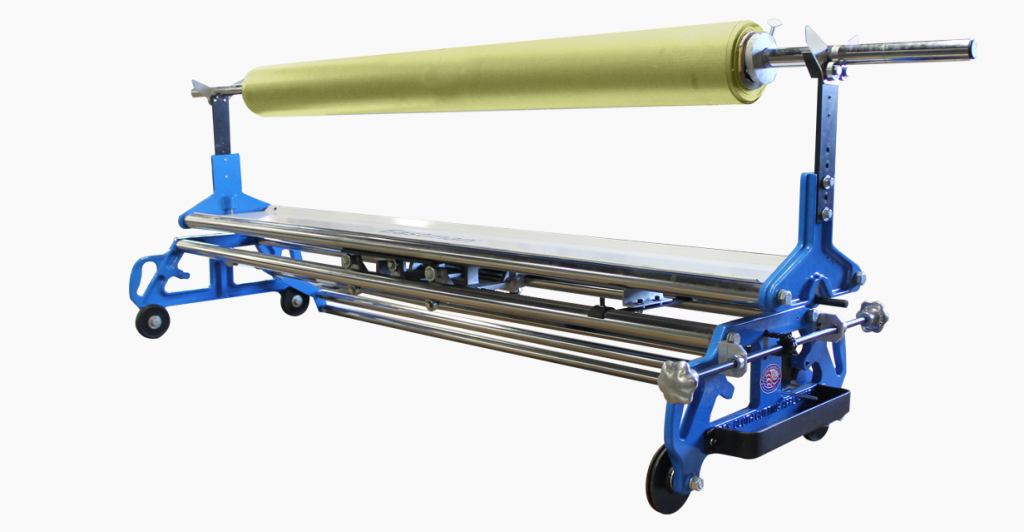

The Turntable is a lightweight easy-to-use spreader. When positioned at the end of a cutting table, the material is manually spread across the table. The maneuverable spreader adjusts for face-up-one way, face-to-face-nap-one-way and face-to-face spreading. To improve efficiency when spreading face-up-one way, a guided Long-Handled Chickadee rotary shear (not attached) can be added to end cut each ply with perfect accuracy.
Categories
Material Handling, Spreading Systems
Product Attributes
| Spread Height - Maximum |
9 in. (22.9 cm) 15 in. (38.1 cm) – optional |
|---|---|
| Roll Weight - Maximum |
150 lbs. (68kg) |
| Roll Diameter - Maximum |
24 in. (61cm) |
| Roll Width |
48 in. – 72in. standard (122cm – 183cm) Contact the factory for custom sizes in 6 in. (15.2cm) increments. |
| Machine Weight |
75 lbs. (34kg) |
Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
