L135 Laser System
SKU: Laser-1
View Product on Marketing Website

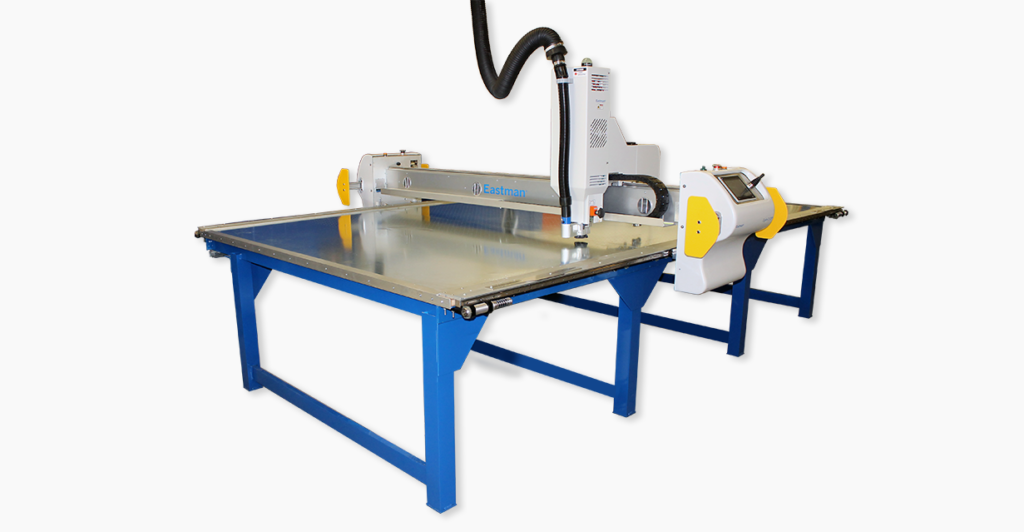

Eastman’s gas assist, class 4 laser cutting machine cuts and seals material edge simultaneously with unmatched precision. Make detailed cuts without physical contact, reducing defects from wrinkling and pulling. The L135 laser mounts to the gantry of a static or conveyor table, allowing quick transition from traditional cutting to laser cutting. Marking and labeling tools, or any other tool head options, can be added. Please contact the factory for CL135 conveyor technical specifications.
Various laser wattage configurations are available: 50, 60, 80, 100, or 120 watts. The ceramic core is durable and provides optimal laser stability while cutting, engraving, or perforating.
Available in a range of widths, lengths, and various tool head accessory options, the laser cutting table will be built to match your application needs, allowing you to customize the tools and capabilities to maximize productivity.
Categories
Automated Cutting, Automated Cutting Systems
Product Attributes
| Laser Type |
CO2 Ceramic Core |
|---|---|
| Laser Class |
Class 4 |
| Beam Diameter |
0.098 in. (2.5mm) |
| Beam Diameter at Cutting Surface |
0.014 in. (0.343mm) |
| Wavelength |
10.6 µm |
| Laser Cooling |
Air |
| Laser Watts |
50, 60, 80, 100, and 120 watt configurations |
| Focal Distance |
2.5 in. (63.5mm) |
| Focus Tolerance Range |
+/- 0.079 in. (+/- 2mm) |
| Maximum Laser Spot Height |
0.80in (20.4mm) |
| Fume Extraction |
Above table: 266 cfm, required 3 in. (76.2mm) flex hose. Below table: 266 cfm |
| Gas Assist |
N2 recommended, CO2 acceptable |
| Laser Recharge |
Not required |
| Laser Lockout |
Key switch |
| Signal Indicator |
Green: Not actively firing; system state is idle, Orange: Not actively firing; system state is gantry moving, Red: Actively firing, Red/Yellow Flashing: laser fault |
| Width |
54 in. (1.37m) 60 in. (1.54m) 72 in. (1.82m) 78 in. (1.98 m) 96 in. (2.44 m) 108 in. (2.74 m) 114 in. (2.90 m) 126 in. (3.20 m). Please contact the factory for active cutting zone dimensions. Custom widths available, please contact the factory for more information. |
| Length |
8 ft. (2.44m) 12 ft. (3.66m) 16 ft. (4.88m) 20 ft. (6.10m) 36 ft. (10.97m)+ Please contact the factory for active cutting zone dimensions. Custom lengths available, please contact the factory for more information. |
| Drive System |
Dual-X Axis, Y-Axis & Theta Axis. X & Y-Axis Rack & Pinion Drive, Brushless Servo Motors |
| Electric - Control Power/PC |
230V, 3 ph, 50/60 Hz, 5.4 kVA. Stand-alone step-down/up transformer required for other voltages. |
| Electric - Vacuum Blower |
208/230/380/460V, 3 ph, 50/60 Hz, 7.5 HP, VFD control optional |
| Power: Pneumatic |
75 – 90 psi at 15 SCFM (5.17 – 6.2 bars at 0.42cmm) |
| Maximum Laser/Plotting Speed |
Material and table length dependent. |
| Material Thickness |
Material dependent |
| Compressed Air Consumption |
15 CFM |
| Sound Level |
<76 db(A) |
| Operating Temperature |
55 – 100°F (12 – 37°C) |
| Humidity |
20 – 80% (non-condensing) |
| Options |
2 in. (50.8mm) laser lens, brass tip laser nozzle, lens removal tool, lens cleaning tissue, 3 in. (76.2mm) dust connection hose, test burn cards, spare laser optics kit, fume extraction pre-filter, fume extraction hepa-filter, fume extraction carbon-filter |
| Hazardous Material |
Do not cut flammable material or any material emitting toxic fumes when cut with the laser. See Material Cut/Do Not Cut list. |
