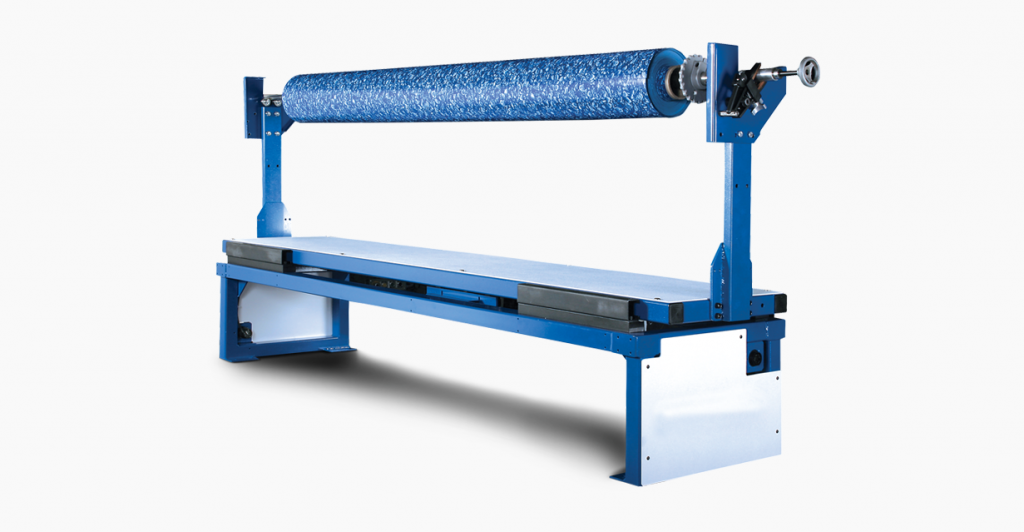

Roll Stand
SKU: CRA-310
View Product on Marketing Website
The Roll Stand System allows the user to easily handle rolled goods for spreading onto the cutting system, maintaining precise alignment of each ply with a photo-electric edge control unit. Many configurations and styles available.
Categories
Feeding Systems, Material Handling
Product Attributes
| Width |
66 in. (1.7m) 72 in. (1.8m) 78 in. (2.0 m) Custom widths available in 6 inch width increments (15.2cm) please contact the factory for more information. |
|---|---|
| Standard Weight Capacity |
300 lbs. (136 kg) |
| Maximum Roll Diameter |
24 in. (61 cm) Custom-built systems available for up to 48 in. (1.2m) diameter rolls |
| Power Requirements |
110V at 15 amps, 1 ph 220V at 8 amps, 1 ph |
Disclaimer: Achievable speeds and accelerations are tool, material and thickness dependent. All indicated speeds, dimensions, weights and performance data are approximate and subject to change without notice.
