Standard Cardinal®
SKU: 548
View Product on Marketing Website

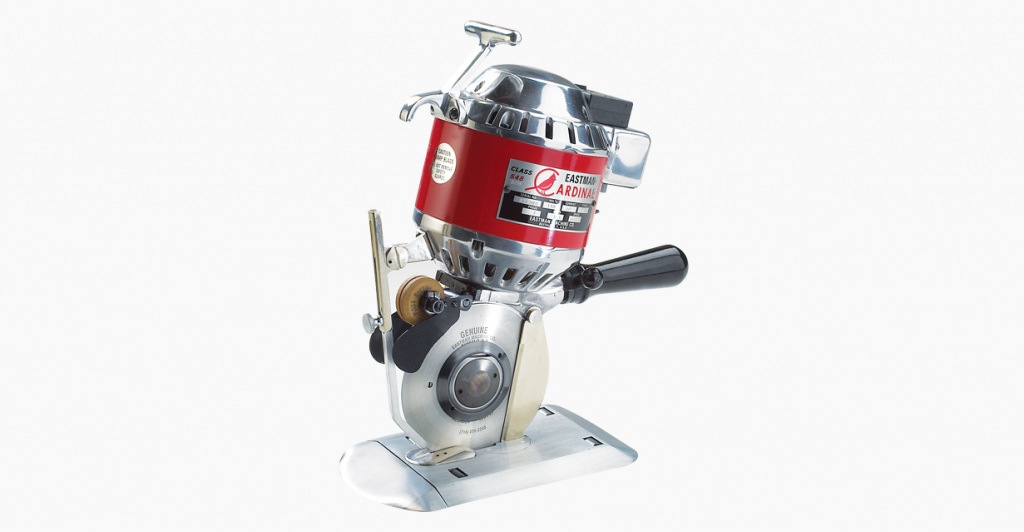

The Cardinal® model 548 is Eastman's most widely-used round knife machine. It is available in two different blade sizes, and it is designed with a lightweight, powerful motor to provide optimum cutting configuration.
Eastman round knife machines are ideally suited for cutting large radius curves, straight lines and are applicable for a wide range of difficult to cut materials.
Categories
Manual Cutting, Round Knives
Product Attributes
| Motors |
110V, 1ph, 50/60Hz 220V, 1ph, 50/60Hz High speed (3600/3000 RPM) Low speed (1800/1500 RPM) |
|---|---|
| Horsepower |
0.34hp, 1ph 0.48hp, 3ph |
| Weight |
21 lbs. (9.52kg) |
| Blades |
Standard: Carbon Steel Optional: High Speed Steel, Grooved, PTFE Coated |
| Sharpener Stones |
Standard: 120 Heavy Optional: 150 Medium, 220 Fine |
| Options |
Knife lubricator, stationary base plate |
| Blade Size |
5.25 in. (13.3 cm) 6 in. (15.2 cm) |
| Cutting Capacity |
3.125 in. (7.95cm) 3.5 in. (8.89cm) |
