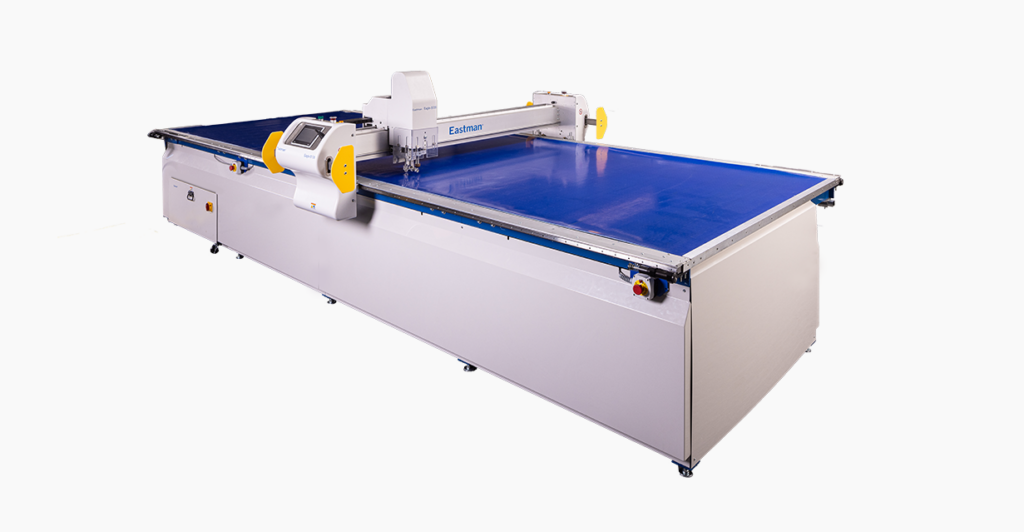

S135 Static Table Cutting System
SKU: S125
View Product on Marketing Website
Eastman’s static table system is capable of cutting, marking and punching virtually any flexible material at speeds of up to 60 inches per second (152.4 cm/sec.). The static cutting table has proven itself as the go-to resource for materials like cotton, nylon and vinyl as well as difficult-to-cut materials—such as polystrand, p-tex, and fiberglass-polyester blends.
The system’s high-precision configuration features multi-axis motion for more defined and accurate cuts. Material is spread across the static table by an operator or with the use of a pneumatic gripper bar. The open plenum vacuum system design ensures evenly dispersed airflow for optimal material hold-down. This computer-controlled system features zoning capabilities to enable cutting in one area while the operator is simultaneously picking parts in another, maximizing daily production capacity.
The static table system is available in a range of system lengths and widths to meet the demands for prototypes, one-offs and full-production runs.
Categories
Automated Cutting, Automated Cutting Systems
Product Attributes
| Width |
54 in. (1.37m) 60 in. (1.54m) 72 in. (1.82m) 78 in. (1.98 m) 96 in. (2.44 m) 108 in. (2.74 m) 114 in. (2.90 m) 126 in. (3.20 m) 156 in. (3.96 m)+ Please contact the factory for active cutting zone dimensions. Custom widths available, please contact the factory for more information. |
|---|---|
| Length |
8 ft. (2.44m) 12 ft. (3.66m) 16 ft. (4.88m) 20 ft. (6.10m) 36 ft. (10.97m)+ Please contact the factory for active cutting zone dimensions. Custom lengths available, please contact the factory for more information. |
| Drive System |
Dual-X Axis, Y-Axis & Theta Axis. X & Y-Axis Rack & Pinion Drive, Brushless Servo Motors |
| Electric - Control Power/PC |
230V, 3 ph, 50/60 Hz, 5.4 kVA. Stand-alone step-down/up transformer required for other voltages. |
| Electric - Vacuum Blower |
208/230/380/460V, 3 ph, 50/60 Hz, 7.5 HP, VFD control optional |
| Power: Pneumatic |
75 – 90 psi at 15 SCFM (5.17 – 6.2 bars at 0.42cmm) |
| Maximum Cutting Speed |
60 inches/second (152.4cm/second) |
| Maximum Acceleration |
1.3g |
| Maximum X/Y Speed |
60 inches/second |
| Compressed Air Consumption |
15 CFM |
| Sound Level |
<76 db(A) |
| Operating Temperature |
55 – 100°F (12 – 37°C) |
| Humidity |
20 – 80% (non-condensing) |
