ES-960
SKU: ES-660
View Product on Marketing Website

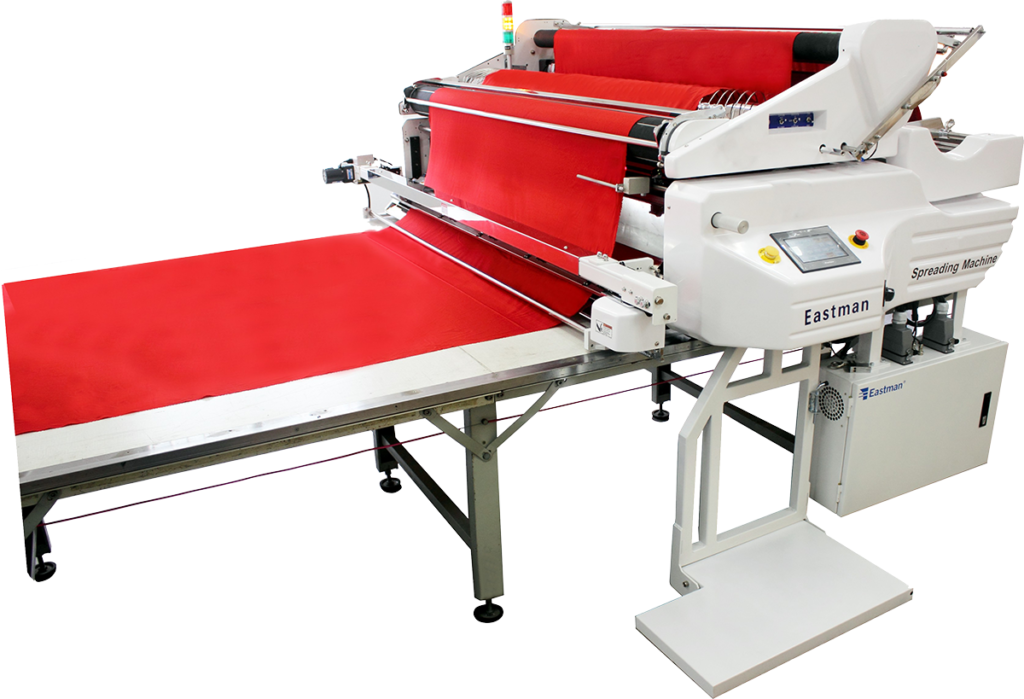

The Eastman ES-960 Series Spreading System is suitable for all types of knit material and offers multiple functions for fast and easy spreading heights up to 7.9” (20cm). It comes with expanded roller, spiral roller, and mesh extension to help relax the material as it comes off the roll. Available in several sizes, the ES-960 is the perfect solution for accurate spreads.
Categories
Material Handling, Spreading Systems
Product Attributes
| Spreading Width - Max |
ES-960/6 ft. – 63 in. (1600 mm), ES-960/7 ft. – 74.8 in. (1900 mm), ES-960/8 ft. – 86.6 in. (2200 mm), ES-960/9 ft. – 98.4 in. (2500 mm), ES-960/10 ft. – 110.2 in. (2800 mm), ES-960/11 ft. – 122.1 in. (3100 mm), ES-960/12 ft. – 133.9 in. (3400 mm) |
|---|---|
| Table Width |
ES-960/6 ft. – 72.4 in. (1838 mm), ES-960/7 ft. – 84.2 in. (2138 mm), ES-960/8 ft. – 96 in. (2438 mm), ES-960/9 ft. – 108.2 in. (2749 mm), ES-960/10 ft. – 120.0 in. (3054 mm), ES-960/11 ft. – 132.2 in. (3359 mm), ES-960/12 ft. – 144.3 in. (3664 mm) |
| Spreading Speed |
318ft./min. (97m/min.) |
| Maximum Spread Height |
7.9 in. (20 cm) |
| Pass through Height |
9 in. (23cm) |
| Spread Length Accuracy |
+/- 0.12 in. (+/- 3mm) |
| Edge Alignment Accuracy |
+/- 0.08 in. (+/- 2mm) |
| Roll Diameter - Maximum |
20 in. (50 cm) |
| Roll Weight Capacity |
265 lbs. (120kg) |
